309 Series Stainless Steel Plate

309L is a variation of low carbon 309 stainless steel used for welding applications. Lower carbon content can minimize carbide precipitation in the heat-affected zone near the weld, which can cause intergranular corrosion (weld erosion) of stainless steel in some environments.

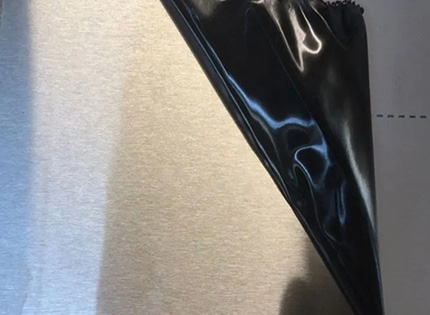

309 series stainless steel plate



Compared with 309S, 309 does not contain sulfur S content. 309S is a sulfur-containing free-cutting stainless steel. Used for occasions with free cutting, curved surfaces and high gloss content

309 series stainless steel plate

309 series stainless steel plate

The Chinese brand of 309S is 0Cr23Ni13, American standard S30908 (American AISI, ASTM) characteristics and uses: corrosion resistance and heat resistance are better than 0Cr19Ni9



Application: furnace charge.
feature

It has good corrosion resistance and high temperature resistance, can withstand repeated heating below 980°C, and has high temperature strength, oxidation resistance, and carburization resistance.



Surface: BA surface, 2B surface, NO.1 (white), 2D surface, NO.4 (frosted), HL (brushed), 8K surface and other surface quality, good brightness



Specifications: Thickness: 0.02mm～40mm; Width 3.5mm～1550mm



Scope of application: Mainly used in boilers, chemical industry and other industries. Petroleum, electronics, chemical industry, medicine, textile, food, machinery, construction, nuclear power, aerospace, military industry and other industries!



chemical composition

309S stainless steel GB/T1220-1992

C 0.08 or less

Mn 2.00 or less

Si 1.00 or less

P≤0.045

S 0.030 or less

Ni visual acuity is 12.0 to 15.0

Cr 22.0 24.0 or less



Mechanical behavior

Yield strength/MPa: ≥205

Tensile strength/MPa: ≥515

Elongation/%: ≥40

Sectional shrinkage/%: ≥50
