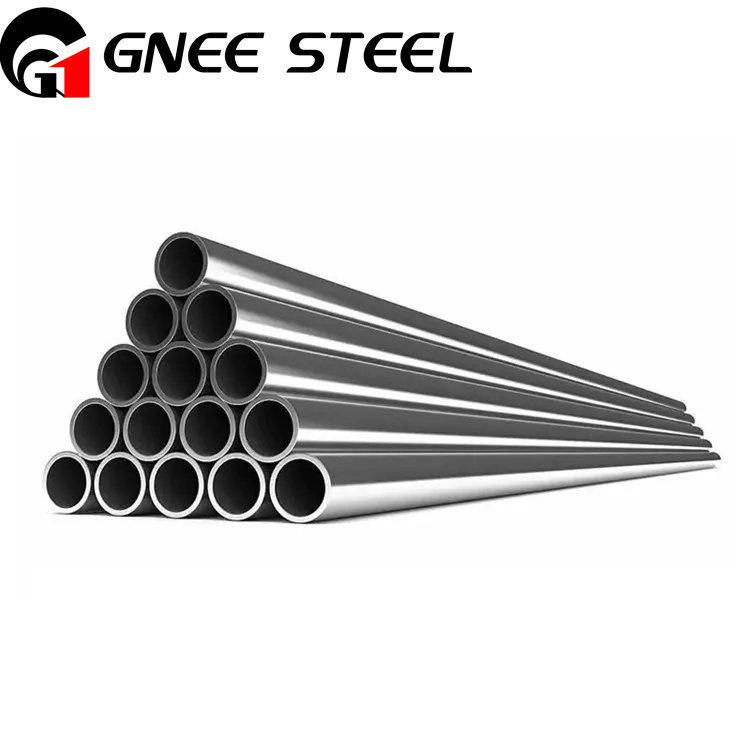

409 ss seamless pipe

Grade 409 stainless steel is a ferritic steel with good mechanical properties and resistance to high temperature corrosion. It is generally considered a chromium stainless steel and is used in automotive exhaust systems and applications requiring weldability.

Grade 409 steel is also available in highly stable forms such as grades S40930, S40920 and S40910. The stability of these steel grades is provided by the presence of niobium, titanium or both in the steel composition.

Type 409 is a heat-resistant ferritic stainless steel with good oxidation and corrosion resistance compared to carbon steel. This titanium-stabilized grade was developed for automotive exhaust systems, but its good formability, weldability and corrosion resistance allow it to be used in other applications. The corrosion resistance of Type 409 is better than coated carbon steel, similar to Type 410 stainless steel, but lower than Type 304/304L stainless steel. Type 409 is not recommended for decorative or surface critical applications as light surface rust may develop when exposed to atmospheric conditions.

Chemical Composition

Chemical Composition (wt%) limits as specified in ASTM A240 and ASME SA240*.

Element	409
Carbon	0.03
Chromium	10.5-11.7
Nickel	0.50
Manganese	1.00
Silicon	1.00
Nitrogen	0.030
Phosphorus	0.040
Sulfur	0.020
Niobium	8 x (C+N) min / 0.15-0.50

product feature

Corrosion resistance:
Resistant to atmospheric and exhaust gas corrosion
In most atmospheres, a slight rust will form on the surface, which will inhibit further corrosion but reduce the attractiveness of the surface

heat resistance
Generally classified as resistant to scaling up to 1499oF (815oC) in intermittent operation and up to 1247oF (675oC) in continuous operation

Solderability
Easy to solder
Recommended preheat 302 to 500oF (150 to 260oC)
Post-weld annealing from 1400 to 1499oF improves weld ductility
No post-weld annealing required when welding thin sections
Automobile exhaust pipes are usually welded without filler metal

application

Although Alloy 409 is primarily designed for use in the automotive emissions industry, it has also been used successfully in other industrial applications. Some examples of applications requiring Alloy 409 include:

car exhaust system
catalytic converter
silencer
exhaust pipe
agricultural equipment
Structural supports and hangers
Transformer case
Furnace components
heat exchanger tubing
