| Elements | Min.（≥） | Max.（≤） | Similar | Remarks |
|---|---|---|---|---|
| C | - | 0.08 | ||
| Si | - | 1.00 | ||
| Mn | - | 2.00 | ||
| P | - | 0.045 | ||
| S | - | 0.03 | ||
| Cr | 18.0 | 20.0 | ||
| Ni | 8.00 | 10.5 | ||
| N | 0.16 | 0.30 |
| Category | Type | Grade | Microstructure | Designations |
|---|---|---|---|---|
| Grades | Stainless Steels | XM-21 | Austenite | USA - UNS , SAE J 405 (1998) - Chemical compositions of SAE wrought stainless steels |
| Grade | Standard | Country | Application |
|---|---|---|---|
| A 240 Type XM-21 | SAE | USA | Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications |
| A 276 XM-21 | SAE | USA | Stainless Steel Bars and Shapes |
| A 959 Type XM-21 | SAE | USA | Standard Guide for Specifying Harmonized Standard Grade Compositions for Wrought Stainless Steels |
| SA-276 XM-21 | AMS | USA | Specification for Stainless Steel Bars and Shapes |
| XM-21 | UNS | USA | Chemical compositions of SAE wrought stainless steels |
| A 240 S30452 | SAE | USA | Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications |
| A 276 S30452 | SAE | USA | Stainless Steel Bars and Shapes |
| S30452 | AISI | USA | Austenitic Chromium Nickel Stainless Steel |
| SA-240 S30452 | AMS | USA | Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications |
| A 240 S30452 | SAE | USA | Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications |
| A 276 S30452 | SAE | USA | Stainless Steel Bars and Shapes |
| S30452 | AISI | USA | Austenitic Chromium Nickel Stainless Steel |
| SA-240 S30452 | AMS | USA | Specification for Chromium and Chromium-Nickel Stainless Steel Plate, Sheet, and Strip for Pressure Vessels and for General Applications |
| Product type | Products | Dimension | Processes | Deliver Status |
|---|---|---|---|---|
| Plates / Sheets | Plates / Sheets | 0.08-200mm(T)*W*L | Forging, hot rolling and cold rolling | Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting |
| Steel Bar | Round Bar, Flat Bar, Square Bar | Φ8-1200mm*L | Forging, hot rolling and cold rolling, Cast | Black, Rough Turning, Shot Blasting, |
| Coil / Strip | Steel Coil /Steel Strip | 0.03-16.0x1200mm | Cold-Rolled & Hot-Rolled | Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting |

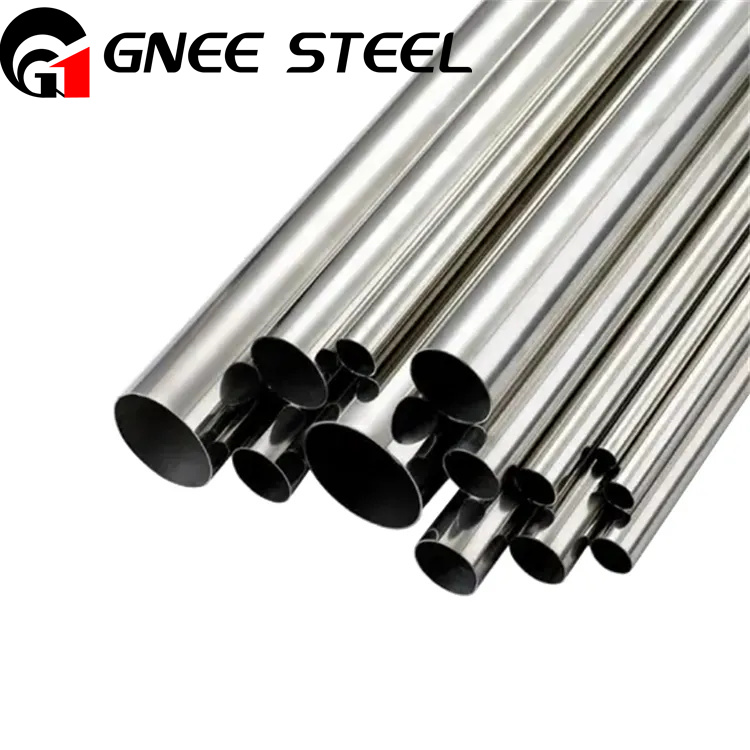

| Pipes / Tubes | Seamless Pipes/Tubes, Welded Pipes/Tubes | OD:6-219mm x WT:0.5-20.0mm | Hot extrusion, Cold Drawn, Welded | Annealed, Solution and Aging, Q+T, ACID-WASHED |
