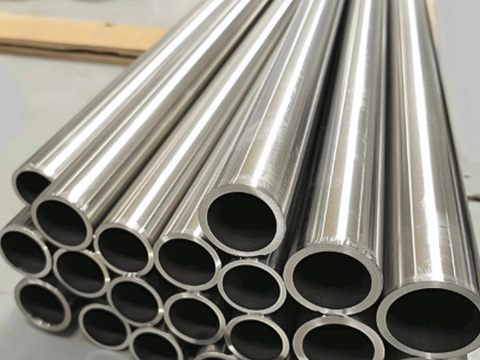

ASTM A213 Stainless Steel Tubing

ASTM A213 stainless steel pipe is a steel pipe that complies with the standard A213 issued by the American Society for Testing and Materials (ASTM). It is mainly used to regulate the manufacturing and inspection requirements of heating surface pipes, headers and steam pipes of low and medium pressure boilers (working pressure is generally not more than 5.88MPa, working temperature is below 450℃).
As a professional stainless steel pipe manufacturer, GNEE produces stainless steel pipes that comply with ASTM A213 standards, including a series of steel pipe grades TP304H, TP309H, TP310H, TP316H, TP321H, etc. In addition, the size and thickness range of steel pipes will be customized according to the actual needs of customers.

Specification: ASTM A213
Grades: TP304, TP304L,TP304H,TP309S, TP309H, TP310S, TP310HTP316, TP316L,TP316H, TP317, TP317LTP321,TP321H TP347,TP347H TP348,TP348H
Size:1/8"to 24"(10.3mm to 610mm)
Thickness:1 mm to 60 mm (Schedule 10s, 20,40s, 40,60,80s, 80,100,120,140,160, XXH)
Final Finishing: Solution Annealed & Pickled/Bright Annealed
Type of Tubes: U-bend & Straight

Chemical Composition of  ASTM A213 Seamless steel pipe

Grade	UNS Design	Composition %
		C	Mn	P	S	Si	Cr	Ni	Mb	Ti	Nb	N	Cu	Ce	B	Al
TP304	S30400	0.08	2	0.045	0.03	1	18.0–20	8.0–11	. . .	. . .	. . .	. . .	. . .	. . .
TP310S	S31008	0.08	2	0.045	0.03	1	24.0- 26	19.0- 22	0.8	. . .	. . .	. . .	. . .	. . .
TP316	S31600	0.08	2	0.045	0.03	1	16.0–18	10.0–14	2.00–3	. . .	. . .	. . .	. . .	. . .
TP317	S31700	0.08	2	0.045	0.03	1	18.0–20	11.0–15	3.0–4	. . .	. . .	. . .	. . .	. . .

Why Choose GNEE

GNEE has cutting, drilling, laser processing and other mechanical processing equipment. It can produce pipes and plates of various widths and lengths, and can provide cutting and processing services for customers.

If you are looking for Stainless Steel Pipe , please feel free to contact us.

Hardness test
Metallographic structure analysis
Physical property test (such as tensile strength, yield strength, impact toughness, etc.)
Ultrasonic testing
Magnetic particle testing

FAQ

Q: Do you have quality control system?
A: Yes, we have our own quality control laboratory.Third party testing servicesare also available.
Q: What services do you provide?
A: Customized service for each customer, please feel free to contact us!
Q.What is your lead time?
A. Regular stock is usually 10 days. Depends on the products.
