1.4404 stainless steel plate Performance features:
Strong corrosion resistance
Excellent high temperature performance
Good mechanical properties
Excellent welding performance
What is the difference between 316L and 316 stainless steel?
Composition difference: 316L is an ultra-low carbon stainless steel with a carbon content of less than 0.03% and a high content of molybdenum and nickel; while 316 stainless steel has a carbon content of about 0.08% and a high content of chromium.
Heat resistance: 316L has better resistance to carbide precipitation and can be used in the range of 800-1575 degrees; 316 stainless steel is more suitable for intermittent use below 1600 degrees or continuous use below 1700 degrees, but avoid the range of 800-1575 degrees.
316L stainless steel sheets Application areas
Food processing equipment
Brewery equipment
Chemical and petrochemical equipment
Laboratory workbenches and equipment
Seaside building panels
| Thickness | 0.25mm-100mm |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

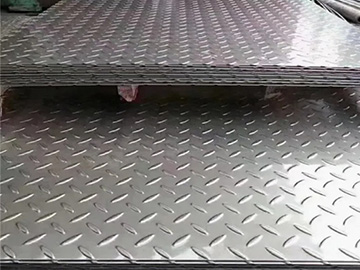

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
ASTM A240 316L Stainless Steel Sheet Chemical Analysis
| Element | 316L |
|---|---|
| Chromium | 16.0 min.-18.0 max. |
| Nickel | 10.0 min.-14.0 max. |
| Molybdenum | 2.00 min.-3.00 max. |
| Carbon | 0.030 |
| Manganese | 2.00 |
| Phosphorus | 0.045 |
| Sulfer | 0.03 |
| Silicon | 0.75 |
| Nitrogen | 0.1 |
| Iron | Balance |
Why choose GNEE
GNEE has twelve 8-22 inch cold drawing unit production lines and supporting pickling, annealing and automatic grinding equipment. The production adopts a real-time online process display and tracking system to effectively ensure production time and quality. The annual production capacity is about 20,000 tons.
Contact us now for a free estimate.
.jpg)
.jpg)
.jpg)
.jpg)
Q. What are your company's main products ?
A: Our main products are stainless steel plate/sheet, stainless steel coil/strip/sheet/plate/pipe/tube/bar, nickel alloycoil/strip/sheet/plate/pipe/tube/bar.
Q: Do you have quality control system?
A: Yes, we have ISO, BV, SGS certifications and our own quality control laboratory.
Q.Which is better, 316 or 304 stainless steel?
A.304 stainless steel offers standard corrosion resistance, formability, strength, and ease of maintenance, while 316 is a close second in terms of sales, but it offers much better corrosion resistance to chlorides and acids.
