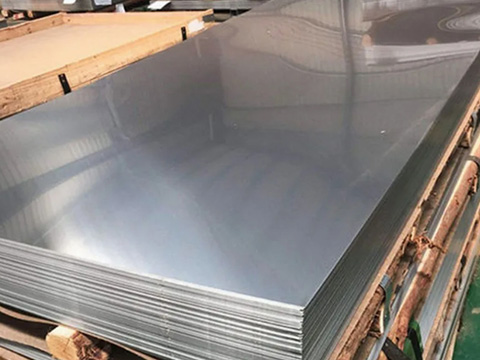

254SMO Hot rolled stainless steel plate

‌254SMO stainless steel plate‌ is a high-performance super austenitic stainless steel with excellent resistance to pitting and crevice corrosion due to its high content of molybdenum (6.0-6.5%).
254SMO hot-rolled stainless steel plate has a density of 8.1g/cm³, a melting point of 1320℃, and a hardness range of 182-223HB‌. In addition, the material maintains stable performance in high temperature environments, with a maximum operating temperature of 538℃‌.

Chemical Composition

Grade		C	Mn	Si	P	S	Cr	MO	Ni	CU
Alloy 254	Min	-	-	-	-	-	12.0	-	-	-
	max	0.15	1.00	1.00	0.04	0.03	14.0	-	-	-

Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B)	Brinell (HB)
Alloy 254	95,000	50,000	25	-	175

Physical Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (mm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100°C (J/kg.K)	Electrical Resistivity (nW.m)
Alloy 254	–	–	0-100°C	0-315°C	0-538°C	at 100°C	at 500°C	–	–
	-7750	200	10.4	11.0	11.4	23.9	26.0	460	600

GNEE stainless steel factory adopts electric furnace + AOD refining process to control the content of impurities such as sulfur and phosphorus (such as S≤0.015%, P≤0.03%), and improve the corrosion resistance of steel plates. Covering 304/316L/310S/904L/S31254, etc., to meet the needs from general to super stainless steel.
Material certification in accordance with international standards such as ASTM A240 and EN 10088-2 can be provided.
Provide surface conditions such as BA (bright annealing), 2B (cold rolled rough surface), HL (brushed), mirror polished, etc.; special treatments such as anti-slip patterns and embossing can be customized.

First-class SS 31254 plate production technology

Stainless Steel Plate Packaging and Shipping

ASTM A240 S31254 Stainless Steel Plate Product Testing

Q: What is the price of 254SMO? Is it better than Hastelloy?
Price range: about 2-3 times of 316L and 1.5 times of 904L;
Compared with Hastelloy: the price is only 1/3-1/2 of Hastelloy C-276, and the processability is better, which is suitable for replacing high-cost nickel-based alloys.
Q: How to verify the quality of 254SMO stainless steel plate?
Certification documents:
Provide ASTM A240/EN 10088-2 material certification and SGS test report;
NACE MR0175 sulfide stress cracking resistance certification and FDA food contact certification can be attached.
Testing methods:
Spectral analysis verifies composition, ultrasonic flaw detection detects internal defects, and salt spray test evaluates corrosion resistance.
